Mastery Commercial Cold Press Juicer

Mastery Commercial Cold Press Juicer

0.00

Download Specs Download Brochure

Mastery represents Zumex’s cold press commercial system for all types of fruit and vegetable juices, leading the way with its crushing efficiency and power, thanks to its shredder discs and its Brushless motor.

It has a series of advantages that improve and facilitate operation. It also has a 11-ton press, which is more compact than any other press of its category to obtain quality juice.

It is robust but functionally designed in order to protect motors, panels and pressure group from splashes and knocks.

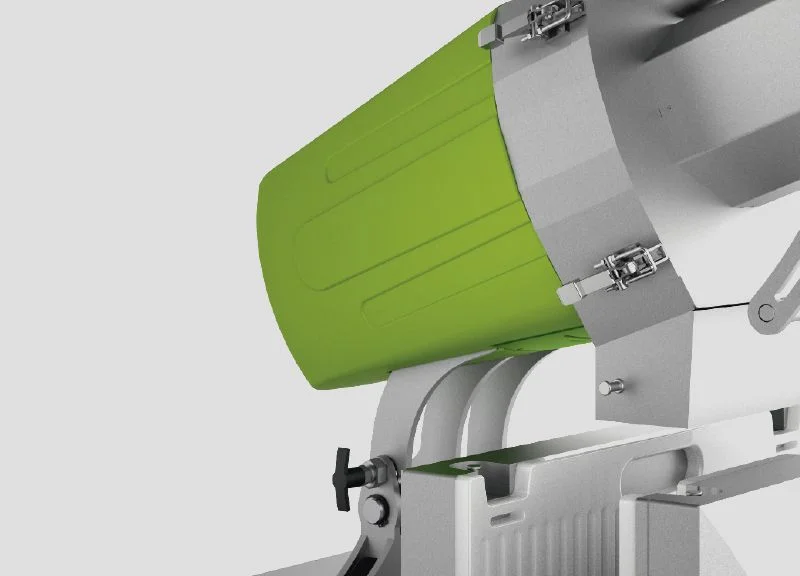

FEED AND CRUSHING SYSTEM

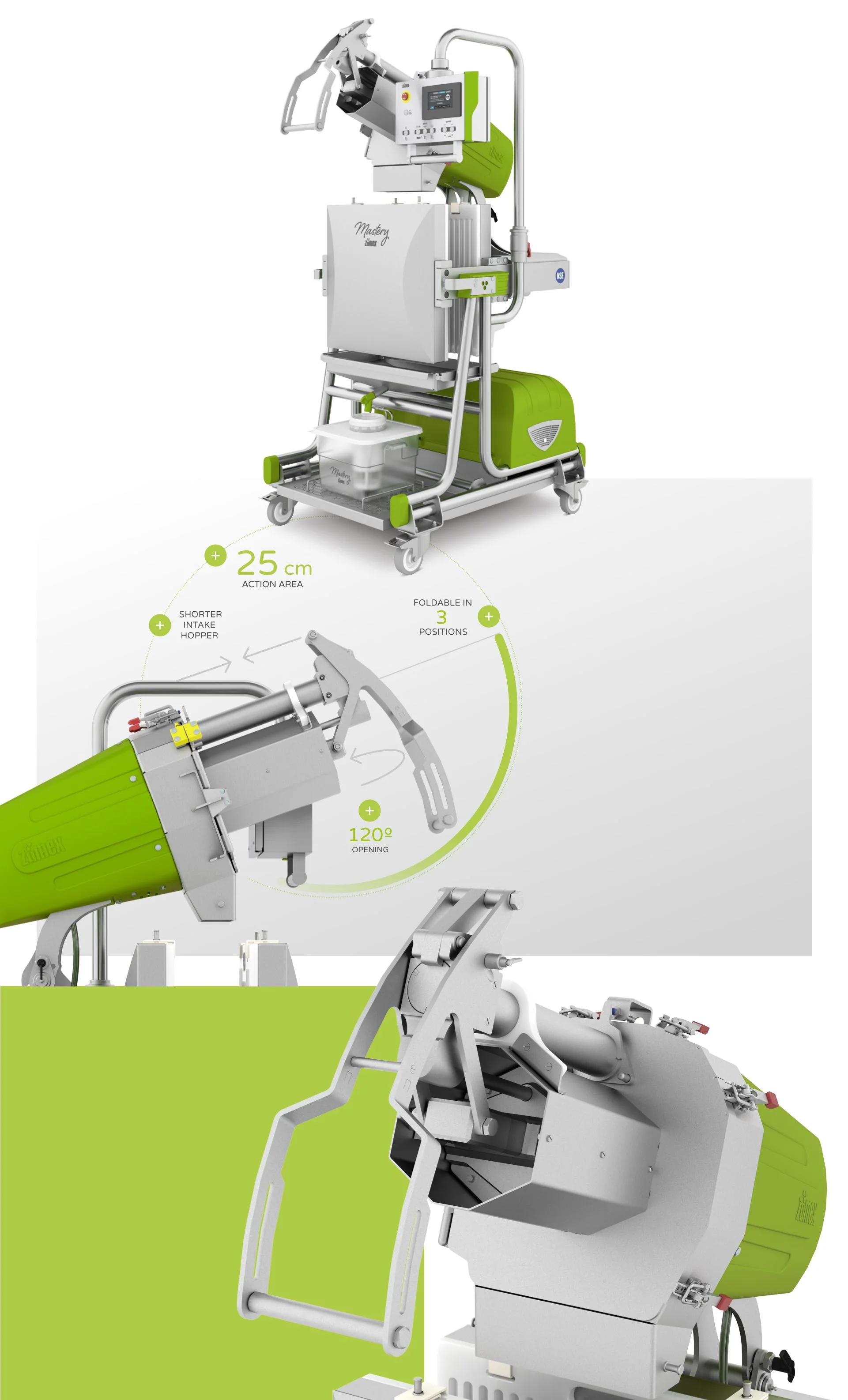

Shorter, folding, and with built-in pusher, it reduces action space, improving access and increasing hygiene, safety and efficiency.

It speeds up and makes loading easier, providing a greater and effortless push.The greater adjustment between pusher and high resistance shredder discs fully optimises the crushing process.

It has a safety stop system during crushing, when the feeder input is released.

POWER

Its Brushless motor provides the greatest torque at any speed, adapting its capacity to the different types of fruit and vegetables.  Its consumption is also less than that of other commonly installed motors.

CHOOSE YOUR WORKING METHOD

Manual or semi-automatic
Use the different programs designed to improve its use, save time and obtain maximum performance.

Choose from among the different programs: soft fruit, hard fruit, green leaf vegetables, mix. Or configure your mode of use by customising the times and pressing speed and number of cycles.

PRESS

High production capacity, of up to 30 gal/h or 110 l/h. (Depending on the type of product).

Its stainless steel press generates 11 tons of force. The cold press racks are designed to achieve a greater yield.

JUICE COLLECTION SYSTEM

It has a stainless steel tray and a 3 gallon tank.

The tank includes a filter to eliminate possible undesirable particles that might get into the juice and to avoid excessive contact with the air.

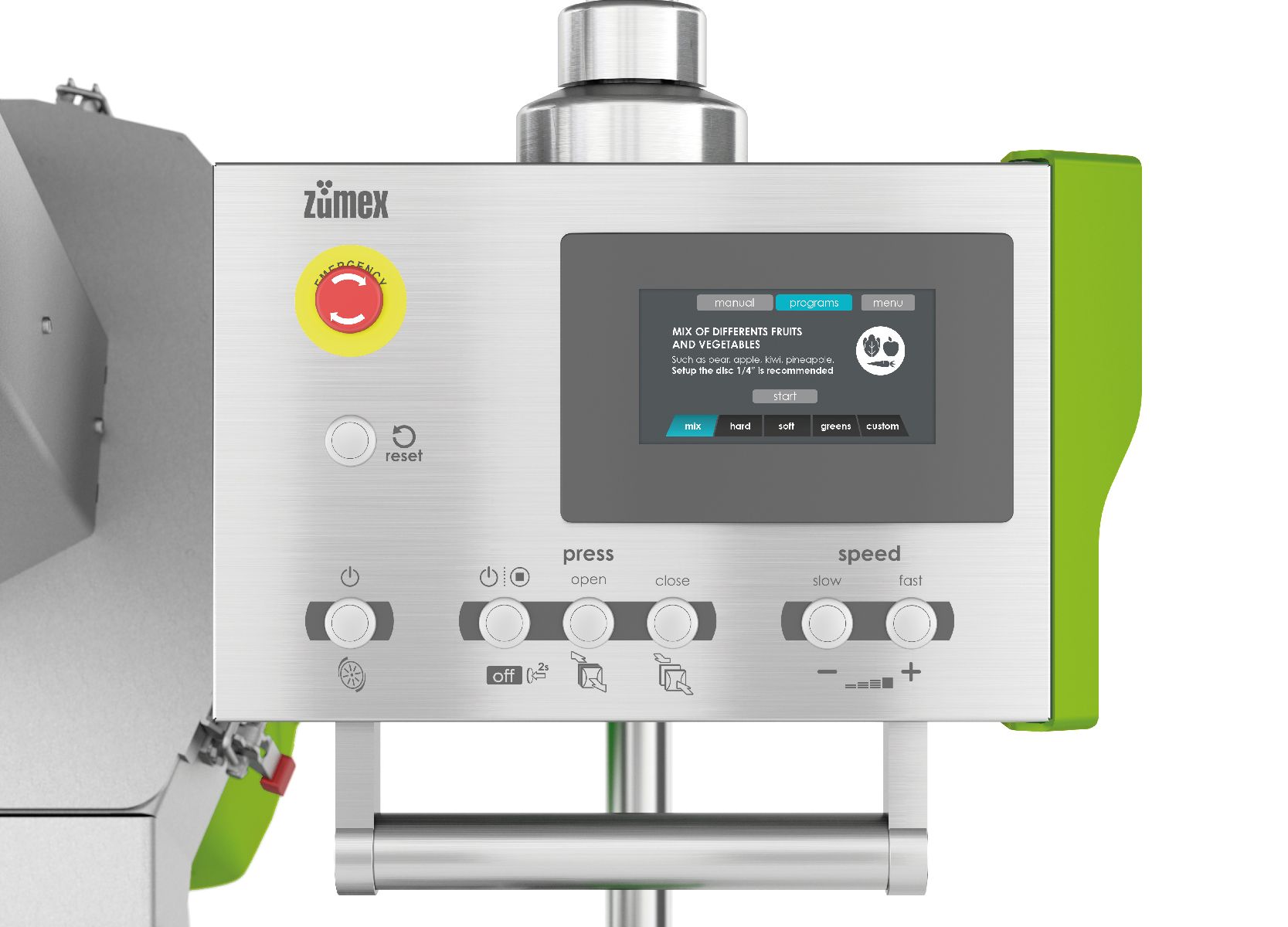

CENTRALIZED CONTROL PANEL

Real time control of all parameters from the operation area, crushing and pressing speed, pressing times and cycles through the control panel with 4.3” full-colour
touch screen.

BUILT-IN SAFETY

It includes pusher presence and door opening sensors that make the cutting disc and the crusher motor of the machine stop automatically.

It also has overload protection and an emergency stop button that deactivates all the systems if needed.


Quantity:
Add to Quote

PRODUCT INFORMATION

Crusher power 1.5 kW (2 hp)

Press power 0.75 kW (1 hp)

Voltage Single Phase 220 | 60 Hz

Motor Brushless

Maximum pressure 11 tons of total power | 185 bar (2610 psi)

Production capacity Up to 30 gal/h | 110 l/h

Juice tank capacity 3 gal | 11 l

Dimensions 940 mm L x 735 mm W x 1.700mm H I 37” x 29” x 67”

Weight 303 Kg | 668 lb

Touch display 4.3” colour screen

Made of Stainless steel AISI 304

Protection IPX4 CE, EMC, CB, KSA, NSF, QSGS



DOWNLOAD SPECS

DOWNLOAD BROCHURE


ACCESSORIES


WHY CHOOSE ZUMEX?


  1. Zumex original extraction System
  2. Leaders in innovation and technology
  3. Commercial Warranty for 3 years by registering your product
  4. 30 years designing innovative juice extraction equipment
